Spiral Wound Lining: A Sustainable and Trenchless Pipe Rehabilitation Method
Justin Conner, PE
Water/Wastewater Project Manager
Marty Paris, PE
Trenchless Technology Practice Leader
Modern trenchless technology has been in the works since 1970. Since then, we have utilized innovative methods, such as horizontal directional drilling, horizontal auger boring, cured in place pipe lining, and pipe bursting, to repair, maintain, and replace pipelines. Another method in this trenchless technology revolution is spiral wound pipe lining, which first appeared in the 1980s—primarily in Australia and Japan—and has been used in the US since the 1990s.
Like other trenchless methods still in their infancy, some entities and contractors hesitate about using spiral wound lining. However, this unique pipe rehabilitation method causes minimal surface disturbance compared to other trenchless technologies. Read on to learn more about the benefits and challenges of spiral wound lining.
How Does Spiral Wound Pipe Lining Work?

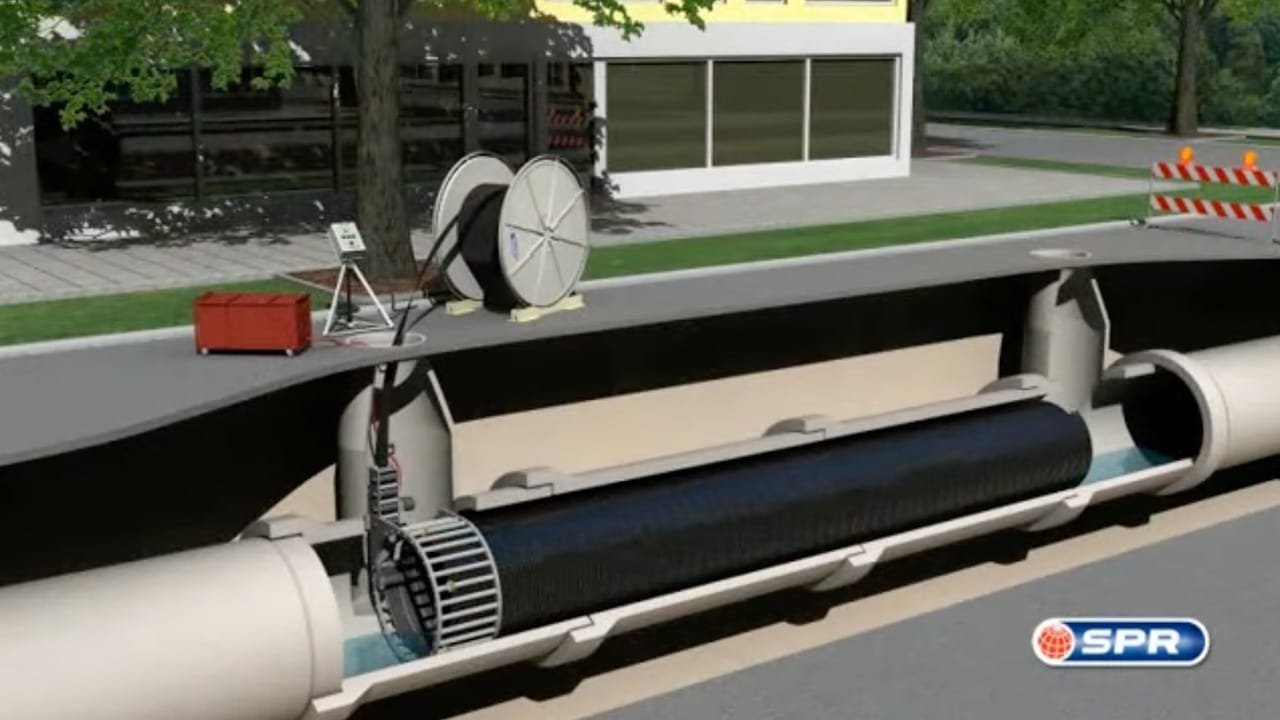

The spiral wound lining method involves building a new pipe within an existing pipe. It does so by feeding a continuous eight- to 12-inch-wide strip of polyvinyl chloride (PVC) or high-density polyethylene (HDPE), from above ground through an existing access point and then winding it into the pipe. As the thin strip winds into the existing pipe, the material joins together, molding to the original pipe’s shape. After the new lining is in place, cementitious grout is installed in the annular space between the existing pipe and the new lining. The method of joining the continuous spiral joint can be done in three ways—tongue and groove joint by hand, tongue and groove joint by machine, or fusion joint by machine.
Machine Vs. Manual Spiral Wound Lining
Both machine and manual methods utilize plastic with a ribbed profile design to rehabilitate culverts, storm drains, and sewer pipes, but there are key differences to note. The machine-wound process uses spools to unwind the plastic strip and feed it into hydraulically-powered stationary machines or traversing machines within or at the pipe’s entrance. The machines continuously wind the material into the host pipe and mechanically lock or fuse the joints together. This method creates joints that are watertight and impervious to root intrusion.
Manually-wound liners are best suited for large pipe installations. This method is usually used for 36-inch diameter pipes and above since the space needs to be large enough for a person to enter the pipe. The PVC comes in coils or panels that workers can lower into the pipe. Workers then join the edges of the material together incorporating male and female double locking edges as they move their way down the length of the pipe, creating a water-tight seal. Any space left between the material and the host pipe is then filled with cementitious grout.
Spiral Wound Lining Benefits
Spiral wound lining is distinctive among other pipe rehabilitation technologies because it is both 100% trenchless and customizable. It can be used in non-circular rehabilitation, such as for square or rectangular boxes and pipes. It’s one of the only trenchless technology methods that allows this type of customization.
Compared to other trenchless technology methods, spiral wound lining can be a time-efficient method. It allows restored pipes to be returned to service quickly. The equipment also does not require excavation, meaning contractors do not need to dig and refill pits to complete the rehabilitation. This method is often completed without the need for full bypass of existing flows allowing contractors to save time and money. Of course, each method has its limits—machine-wound lining can only be installed with approximately 30% flow depth or less.
The Challenges of Spiral Wound Lining
However, spiral wound linings’ strengths of customizability and efficiency can also be its weaknesses. This method requires extensive quality control. In the case of the fusion joints by machine wound lining method, workers need proper training to ensure the material is properly fusion welded at optimal temperatures. If not done correctly, the joints could fail at any moment, and no one would notice until it is too late.
The spiral wound lining method is also not ideal for sharp bends or long stretches of pipe rehabilitation. Since the equipment for this method is driven by hydraulics, it does not have the power to maintain the speed of installation or stability of the new pipe beyond about 1,500 feet.
When using the spiral wound lining method, engineers and entities must account for the new pipe’s smaller interior diameter. This is because the empty space between the old pipe and the new pipe will be filled with cementitious grout, which will decrease the pipe’s diameter. Although it may seem small, this may reduce the rehabilitated pipe’s carrying capacity. In some cases, the hydraulic capacity is maintained or improved because the new lining is significantly smoother than the host pipe.
Overall, spiral wound lining is beginning to pick up steam in the US, particularly in states like California that see it as a sustainable alternative to other invasive pipe restoration construction methods. States taking interest in this method are drawn in by the minimal excavation and the absence of air quality concerns that result with other rehabilitation methods due to chemicals released during the curing process.
Despite its increase of use in the US, spiral wound lining currently is used for unique projects. But, as the trenchless technology industry continues to evolve and the methods become more refined, we can expect to see more of this method incorporated in national pipe rehabilitation projects.
About the Authors
Justin Conner, PE
Justin has more than nine years of experience in design and construction administration on various water transmission and wastewater conveyance projects. He has extensive experience with trenchless pipe installation and rehabilitation, pipe evaluation and assessment, manhole rehabilitation, water main and sanitary sewer design and modeling, construction phasing, and temporary conveyance. His trenchless experience includes cured-in-place, pipe bursting, horizontal directional drilling, pipe jacking & tunneling, pipe ramming, and horizontal auger boring.
Marty Paris, PE
Marty is a trenchless technology practice leader with more than 30 years of experience in the design of water and wastewater infrastructure and rehabilitation projects. He has worked on over 200 miles of large- and small-diameter water and wastewater pipeline projects, ranging from six inches to 120 inches, and has assisted multiple municipalities with planning, design, and construction phases. He has experience resolving a variety of project challenges, ranging from operational to administrative level. His experience includes 200,000 linear feet of trenchless replacement/rehabilitation methods, including cured-in-place, pipe bursting, horizontal directional drilling, microtunneling, fold and form, slip lining, tunneling, and horizontal auger boring.
